Supported Message Formats
Rerun provides automatic visualization for common message types in MCAP files:
- ROS 2 messages
- Foxglove schemas (Protobuf)
Overview overview
This table shows an overview of the ROS 2 and Foxglove message schemas that are automatically converted to Rerun archetypes.
We are continually adding support for more standard message types.
| Modality | ROS 2 | Foxglove Protobuf | Rerun Archetypes |
|---|---|---|---|
| Raw image | sensor_msgs/Image | RawImage | Image, DepthImage |
| Encoded image | sensor_msgs/CompressedImage | CompressedImage | EncodedImage, EncodedDepthImage |
| Video | sensor_msgs/CompressedImage (h264) | CompressedVideo | VideoStream |
| Camera calibration | sensor_msgs/CameraInfo | CameraCalibration | Pinhole |
| Point cloud | sensor_msgs/PointCloud2 | PointCloud | Points3D |
| Geo points | sensor_msgs/NavSatFix | LocationFix, LocationFixes* | GeoPoints |
| Transforms | tf2_msgs/TFMessage | FrameTransform, FrameTransforms | Transform3D |
| Poses | geometry_msgs/PoseStamped | PoseInFrame, PosesInFrame | InstancePoses3D |
| Coordinate frame | .frame_id field in std_msgs/Header | .frame_id field | CoordinateFrame |
| Magnetic field | sensor_msgs/MagneticField | - | Arrows3D |
| Misc. scalar sensor data | sensor_msgs/Imu, sensor_msgs/JointState, sensor_msgs/Temperature, sensor_msgs/FluidPressure, sensor_msgs/RelativeHumidity, sensor_msgs/Illuminance, sensor_msgs/Range, sensor_msgs/BatteryState, sensor_msgs/Joy | - (usually covered via custom schemas, see Schema reflection below on this page) | Scalars |
| Text | std_msgs/String | - | TextDocument |
| Log messages | rcl_interfaces/Log | Log | TextLog |
*Support for
LocationFixis coming soon.
Timelines timelines
The MCAP data loader adds timelines based on the message timestamps.
In addition to the message_log_time and message_publish_time timestamps that are part of every MCAP message, we also add timelines with the application-specific timestamps from ROS and Foxglove schemas.
ROS
Most ROS message payloads have an additional Header that may also contain timestamp information. These timestamps are put onto specific ros2_* timelines.
Timestamps within Unix time range (1990-2100) create a ros2_timestamp timeline. Values outside this range create a ros2_duration timeline representing relative time from custom epochs.
Foxglove
Data from schemas containing a .timestamp field is put onto a timestamp timeline.
Transforms (TF) transforms-tf
Transform messages are converted to Transform3D, with parent_frame and child_frame set according to the frame_id and child_frame_id of each geometry_msgs/TransformStamped contained in the message's transforms list.
The timestamps of the individual transforms are put onto the respective timelines, allowing the viewer to resolve the spatial relationships between frames over time similar to a TF buffer in ROS.
You can read more about how Rerun handles transforms and "TF-style" frame names here.
To see the transforms in the viewer, you can select the entity corresponding to the topic and add a visualizer for TransformAxes3D as shown in the video here.
If you have transforms that correspond to joints in a robot model, you can also read more about how to load URDF models into a recording here.
Poses and frame IDs poses-and-frame-ids
Pose messages are converted to InstancePoses3D with a CoordinateFrame on the same entity path.
Just like Transform3D, you can visualize these poses in the viewer by selecting the entity and adding a TransformAxes3D visualizer in the selection panel.
Note that the visualization requires the parent coordinate frame of the pose to be known, i.e. part of the transform hierarchy of your data.
CoordinateFrames are also used for other message types that are supported by the ros2msg layer, if they have an std_msgs/Header with a frame_id.
For data that can be visualized in 3D views (e.g. point clouds), this means that the viewer takes the respective coordinate frame's transform into account and renders the data relative to it.
Schema reflection schema-reflection
MCAP files allow for arbitrary custom message payloads, so you might have other message types in your files than the set of ROS 2 or Foxglove messages that Rerun automatically converts to archetypes.
Rerun's MCAP data loader automatically decodes unknown Protobuf or ROS 2 messages using schema reflection. This means that you won't get Rerun archetypes out of the box, but the message fields become queryable components (e.g. for training data curation via the Rerun SDK, see here). Depending on the contents of your data, you can still manually add visualizers for certain fields to your blueprint, e.g. a time-series view for scalars or a dataframe view.
Example: time-series plot for custom message scalars example-timeseries-plot-for-custom-message-scalars

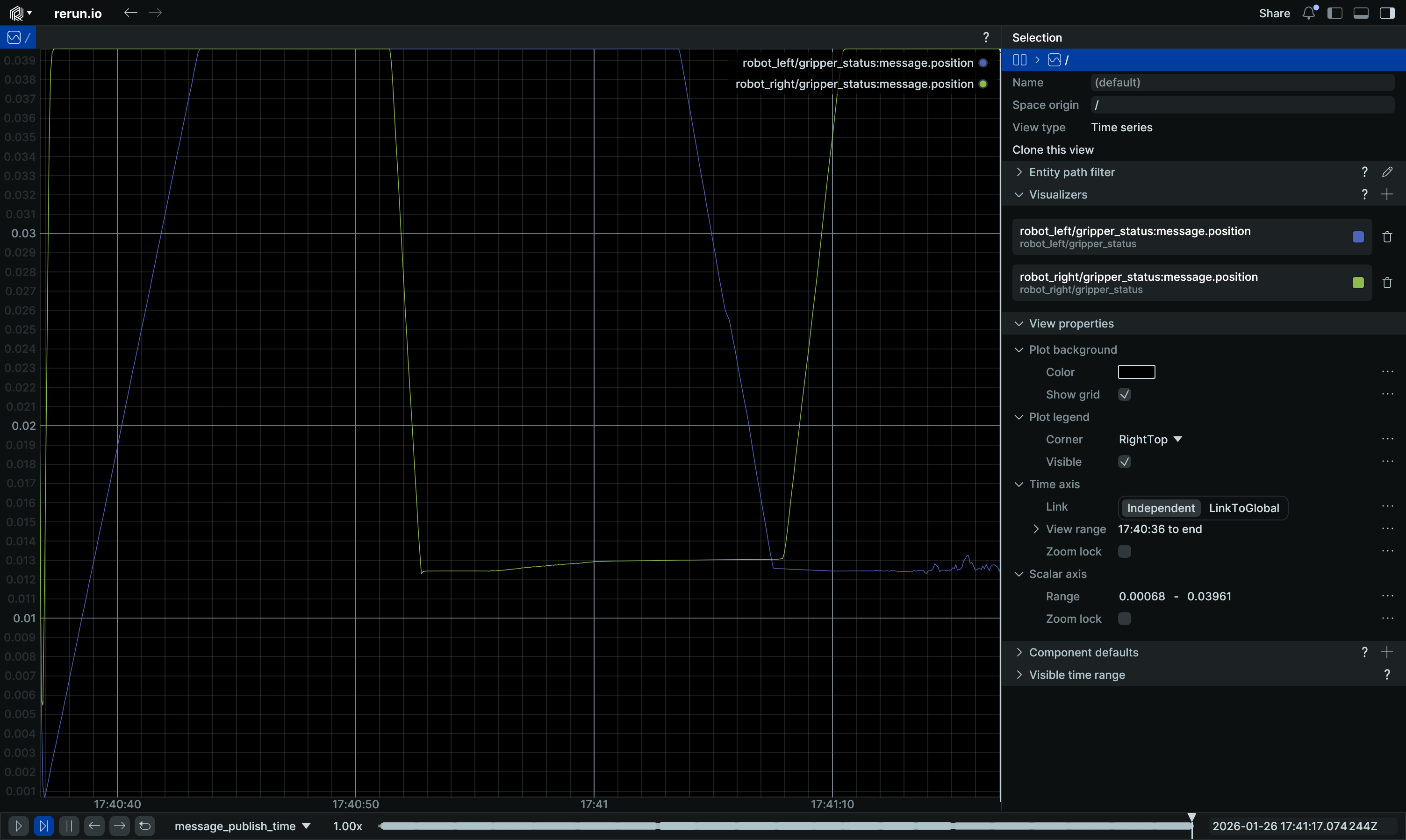

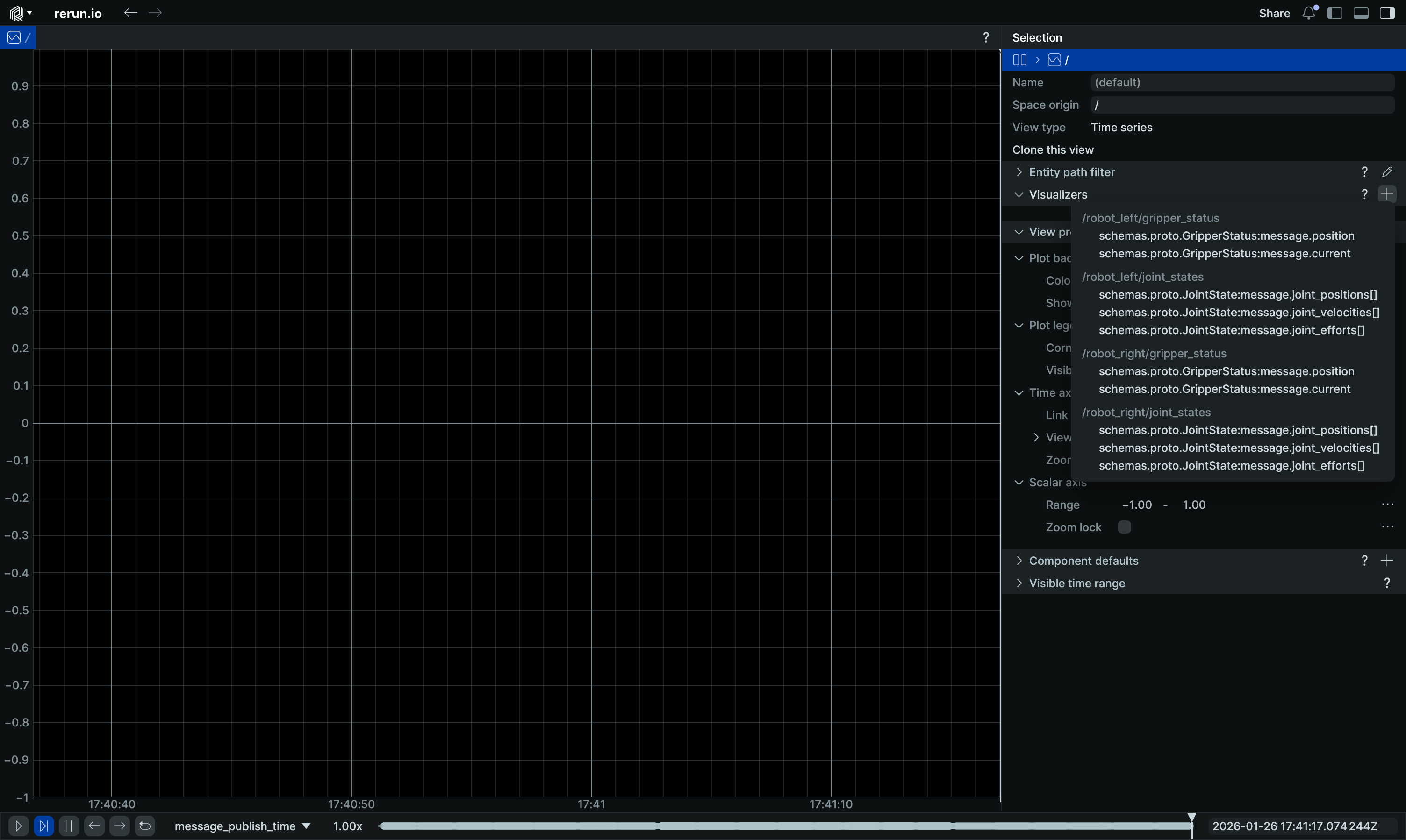

Here's an example with a custom Protobuf message that contains a robot gripper state. After adding a new timeseries view via the blueprint panel, we select the Protobuf fields from our MCAP that we want to view through the view's selection panel:
View decoded message view-decoded-message
Each entity that was decoded from an unknown MCAP message via reflection has an .message component, which contains queryable struct fields.
You can see this also in the selection panel:
ROS1 message types ros1-message-types
ROS1 messages are currently not supported for semantic interpretation through any layer.
The raw and schema layers are able to preserve the original bytes and structure of the messages.
Adding support for new types adding-support-for-new-types
To request support for additional message types:
- File a GitHub issue requesting the specific message type
- Join the Rerun community on Discord to discuss and provide feedback on message support priorities. Or if you're open for a conversation, sign up here
